TITLE: Flow in Pipe Using Unstructured MultiBlock Grid: Input-Library Case, B582

BY: J C Ludwig - CHAM User Support Team

DATE: 1996 PHOENICS VERSION: 2.2.1

• The problem considered is 3-dimensional, steady, laminar, isothermal flow in a circular pipe with a 90 degree bend.
• The main objective of the calculations is to show the capabilities of the Generalised Colocated Velocity (GCV) solver.

• The pipe geometry is constructed of five separate blocks. A central cartesian block is surrounded by four polar-style blocks. This creates an unstructured grid, even though each block is structured within itself.

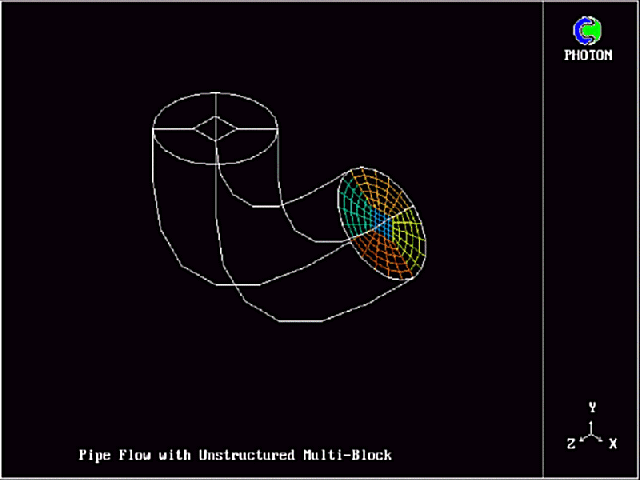

The images show the geometry with multi-block structure:

The Multi-Block Grid

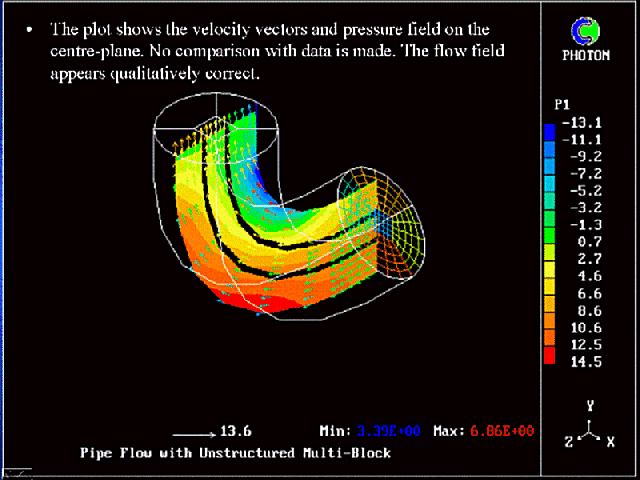

The Flow Field on the Centre-Line of the Duct.
